Programmation Web Avancée Client-Side Basics

# @chunk: chunks/title.md # Questions?
Comments? {no-print} # @chunk: chunks/objectives.md ## Design of Web Applications {var-cours-n} : Overview {#plan overview} - Introduction {intro} - HTML and DOM {dom} - Styling and CSS {styling} - More {more} # @copy:#plan # @copy:#plan: %+class:inred: .intro ## Client Side Technologies {/no-status} // hum - A few langages {dense} - HTML (declarative langage): page structure {html} - CSS (declarative langage) : styling of elements {css} // including le hover sur les widgets - Javascript (imperative/functional langage) : behavior {js} // le form dont avec le bouton + click l'image - *Java, PHP, Python, ... : server-side behavior* {server} // also js - @anim: .html + .TIB | .TIB p.par | .TIB img | .TIB ol | .TIB form | .TIB p.links | .css - @anim: %+class:float:.TIB img - @anim: %+class:styly:.TIB - @anim: %+class:roman:.TIB ol - @anim: %+class:border:.TIB img - @anim: %+class:shadow:.TIB img - @anim: %+class:green:.TIB li - @anim: .js | .server

This is a paragraph with an image, followed by a list and a form and two links. All together, they form a web page.

first interesting element
second element

to infinity and beyond

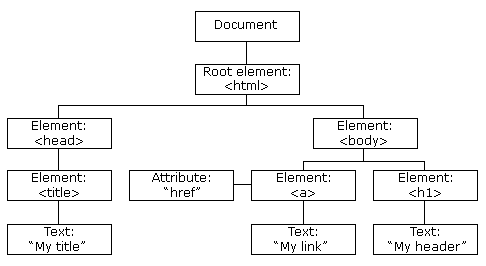

# @copy:#plan: %+class:inred: .dom ## A Simple HTML page (minimal) {libyli} ```html <!DOCTYPE html> <html lang="en"> <head> <meta charset="utf-8"> <title>title</title> </head> <body> content </body> </html> {slide dense} ``` - HTML Page Structure - `html` root element - `head` for metadata (encoding, title, ...) - `body` for the actual page content - HTML Elements {libyli} - head elements: meta, title, style, script - body elements: p, h1, h2, …, h6, ul, ol, li, dl, form, input, table, … - more body elements: a, em, strong, i, b, … - more body elements: div, span, img, video, object, … ## The Document Object Model (DOM) {libyli}

a cross-platform and language-independent convention for representing and interacting with objects in HTML, XHTML, and XML documents

- A set of nodes - representing the document - organized in a tree structure - navigable in any direction (parent, children, previous/next siblings) - A representation of an HTML document - tree of elements - each with possible attributes - With APIs - to manipulate the tree - available for most existing languages - (most importantly in this course, Javascript) ## Basic HTML Elements {libyli} ```html <h3>Demo</h3> <p class="hummm yeah"> This is a paragraph with an image then a list and a form and two links </p> <img src="media/kitten.jpg" width="200px" alt="kitten"> <ol> <li>first interesting element</li> <li>second element</li> </ol> <form> <input type="text" id="datext" placeholder="name..."> <input type="submit" value="go"> </form> <p class="links"> <a href="http://graphhopper.com/">to infinity</a> and <a href="https://cozy.io/">beyond</a> </p> {} ``` - Headings (`h1`...`h6`), paragraphs (`p`), ordered (numbered) and un-ordered lists (`ol`, `ul`), list items (`li`), images (`img`), links (`a`) {dense} - More: section, nav, article, code, sup, sub, blockquote, pre, table/tr/td, … {dense} - un-semantic blocks element (`div`) and inline element (`span`) {dense} # HTML: Questions? Demo? # @copy:#plan: %+class:inred: .styling # CSS
never go out of style ## Making the Web, With Style

This is a first paragraph.

This is a second paragraph.

```html <!DOCTYPE html> <html lang="en"> <head> <meta charset="utf-8"> <title>title</title> </head> <body> <p>This is a first paragraph.</p> <p style=" color: red; border: 1px solid blue; background: #EFF; margin-left: 50px; padding-bottom: 30px; "> This is a second paragraph. </p> </body> </html> {slide dense} ``` - Style declarations {slide} - «property» `:` «value» - declarations are semicolon-separated (`;`) ## Basics of Cascading Style Sheets (CSS) {libyli} - Motivation - separate content from styling - Principle - define styling rules to apply to elements - e.g., all paragraphs should have a margin - CSS Syntax {libyli} - comments: `/*` «whatever» `*/` - NB: * // ...{smartcode}* is not a comment in CSS - rule: «selector» `{{}` «semi-colon-separated-declarations» `}{}` - example: `p.cool {color: red;}{}` - Where to put the CSS rules? - directly in a `style` element (within the `head`) - in a separate file, with a `.css` extension,
included with a `link rel="stylesheet"` element ## Basic CSS Selectors … {libyli} - Element selector - `*`: any element (any node in the tree) - `e`: any element of type `e` (any node *<e>{smartcode}*) - Class selector - `.c`: any element with class `c` (e.g. *<p class="toto c z">{smartcode}*) - Identifier selector - `#toto`: any element with identifier `toto` (e.g. *<p id="toto">{smartcode}*) - Conjunctions of selectors (no spaces) and “or” - `e.c`: any element of type `e` with class `c` - `e.c.d`: any element of type `e` with both class `c` and `d` - `e#i`: element of type `e` if it has id `i` - `E, F`: any element matching `E` or `F` - Children and descendants - `E F`: any `F` that is a **descendant** of a `E` - *E > F{smartcode}* (or *E>F{smartcode}*): any `F` that is a **child** of a `E` ## More Advanced CSS Selectors {libyli} - Attribute filters - `E[attt]`: any `E` with a `attt` attribute - `E[attt="toto"]`: any `E` with a `attt` attribute equal to `toto` - `E[attt*="toto"]`: any `E` with a `attt` attribute contains `toto` - … - Pseudo-classes - `:visited`: any already visited link - `:hover`: an element with the mouse hovering it - Following siblings - `E + F`: any `F` that **immediately** follows an `E` - `E ~ F`: any `F` that follows an `E` # CSS Styling: Questions? Demo? # CSS Styling: Box Model − Live ## CSS Styling: Box Model {libyli} @SVG:media/border4.svg 200px 200px {floatright defaults}

The box model

- Margin - example: `margin: 1em 2em 3em 4em` - @anim: .defaults - space around the object - @anim: %attr:.demospan: margin: .5em 1em 1.5em 2em - Border - example: `border: 5px solid red` - @anim: %%class:withredborder:.demospan - Padding - example: `padding: 1em 2em 3em 4em` - space inside the object's border - @anim: %attr:.demospan: padding: 0.5em 1em 1.5em 2em - Outline (mostly for debugging) - like a border, but takes no space - @anim: %%class:withpinkoutline:.demospan - Defaults, shorcuts and units {libyli} - can use less than 4 values - @anim: #a2to1,#a3to1,#a4to2 - can set only a part, e.g., `margin-left: 0`, `padding-right: 0` - @anim: %attr:.demospan: margin-left: 0 + - @anim: %attr:.demospan: padding-right: 0 - possible units: `0` (with no unit), `px`, `pt`, `em`, `%` # CSS Styling: Positioning − Live ## CSS Styling: Positioning - Notion of `display` as `inline`, `inline-block`, `block` - Positioning (`left`, `top`, ..., `height`) - `static`: default preferred positioning - `relative`: offset with the preferred position - `fixed`: absolute position inside the page - `absolute`: position in the reference frame of the closest positioned ancestor - Box sizing: - `box-sizing: content-box` (default) - `box-sizing: border-box` - Flexbox ! # CSS Styling: Transitions/Animations − Live ## Priorities and Specificity in CSS {libyli} - Priorities (decreasing) - `!important`-values
> inline-style
> (CSS RULES) selector-specificity
> (CSS RULES) rule-order
> parent-inheritance
> browser-default - Selector specificity (try) {selectors} - *p {color: white;}* 1 - *p em {color: green;}* 2 - *div p em {color: green;}* 3 - *.fancy {color: red;}* 1,0 - *p.fancy {color: blue;}* 1,1 - *p.fancy em.cool {color: yellow;}* 2,2 - *#id218 {color: brown;}* 1,0,0 - *(inline) style="…"* 1,0,0,0 ## Different Ways of Adding Style {libyli} 1. Inline, with style attribute - priority over other solutions - thus, difficult to override - *recommendation*: do not use it 2. Using CSS rules (preferred way) {listisalpha} 1. in a `style` element 2. in a file included via a `link rel="stylesheet"` element ```html <!DOCTYPE html> <html lang="en"> <head> <meta charset="utf-8"> <title>title</title> <link rel="stylesheet" href="allblue.css"> <style> p {color: red;} </style> </head> <body> <p style="color: green">This is a paragraph.</p> </body> </html> {slide dense} ``` # @copy:#plan: %+class:inred: .more ## Potentially Useful Tools for Experimentation - Your favorite editor + a browser + F5 (or an auto-refresh) - Your browsers "dev tools" (Ctrl+Shift+I) - A live CSS editor with autocompletion, in your browser, like liveweave - A CSS-aware IDE for auto-completion - An IDE with live CSS edition (e.g. in netbeans) ## Next - HTML+CSS+… + practice - Installation help-desk ## Key Points {key deck-status-fake-end} - ?
